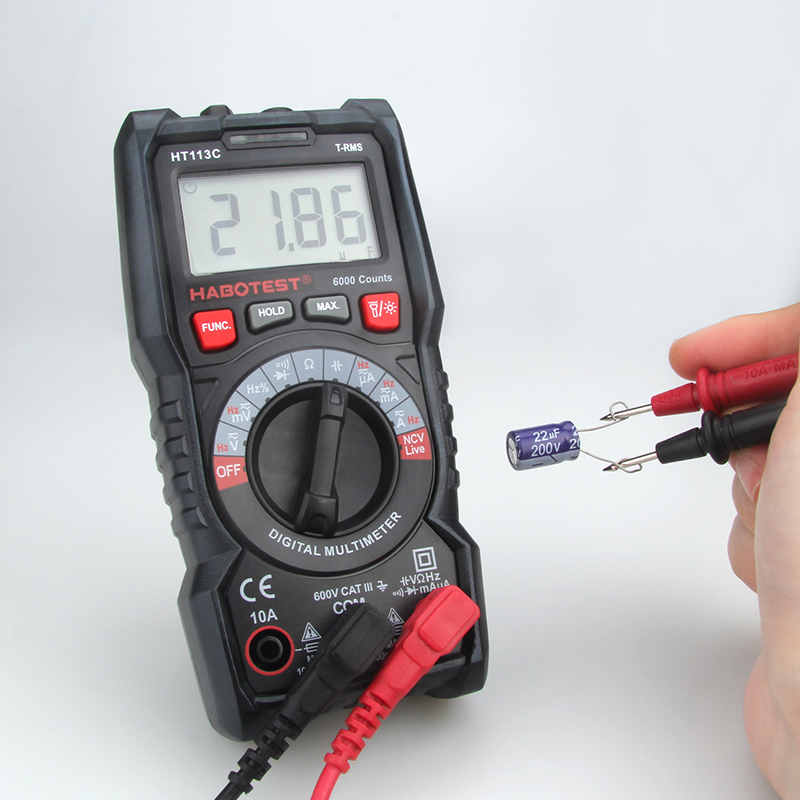

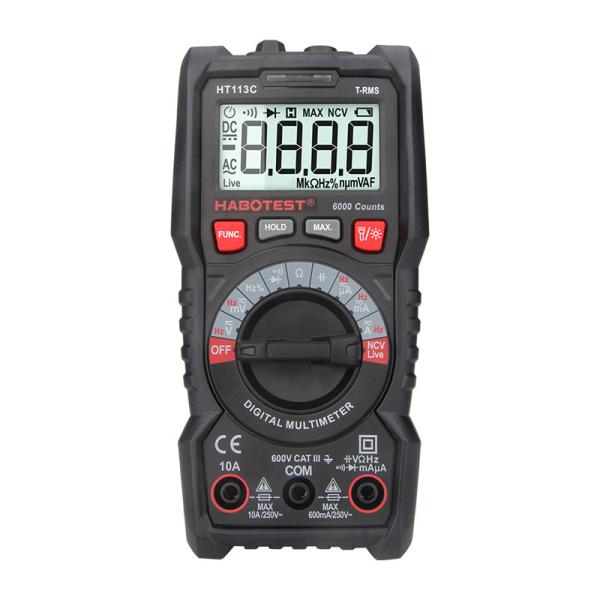

600uA 6000 Counts 600Ohm Digital Auto Range Multimeter

Place of Origin : Guangdong, China

Brand Name : Habotest

Model Number : HT113C

MOQ : 1-49 Pieces

Price : $12.80

Measuring Current Range : 600uA/6000uA/60mA/600mA/10A

Measuring Voltage Range : 600mV/6V/60V/600V

Measuring Resistance Range : 600Ohm/6kOhm/60kOhm/600kOhm/6MOhm/60MOhm

Measuring Capacitance Range : 10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF

Dimensions : 151*75*48mm

True RMS : yes

bandwidth : 40~400Hz

battery test : 1.5V/9V

Live test : have

DIY : suitable

Certificate : CE Rohs EMC

Selling Units : Single item

Single package size  : 15.5X11X5.5 cm

Single gross weight : 0.350 kg

Package Type : 40pcs/ Cartoon

Contact Now

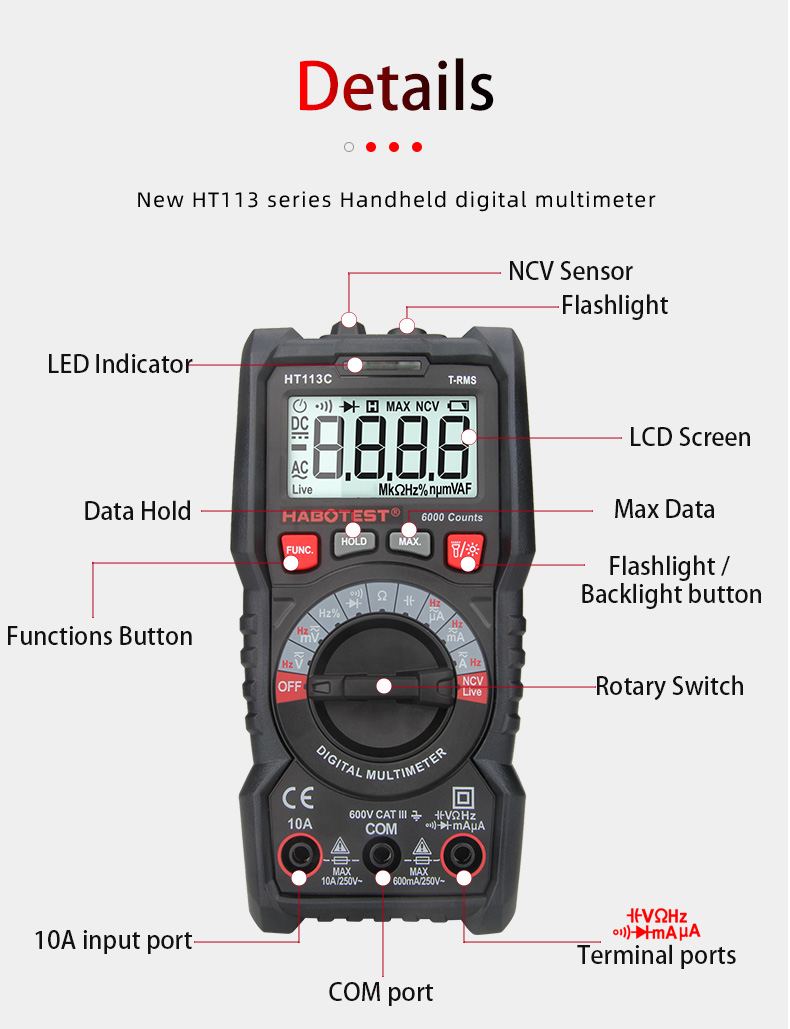

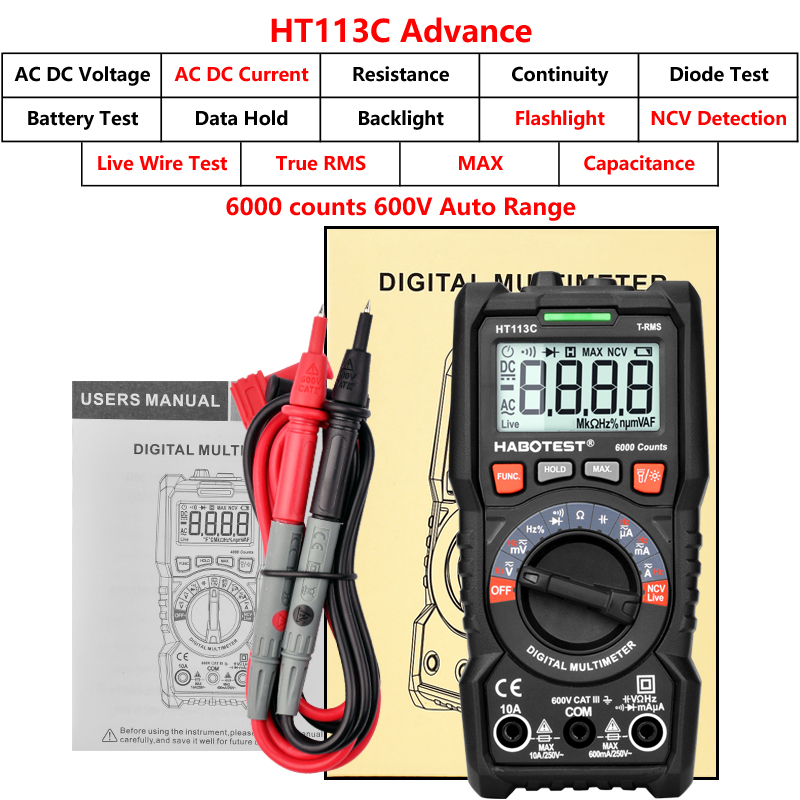

Habotest HT113C DMM Digital Multimeter DC AC voltage Current Capacitance True RMS  Live test



This Digital Multimeter has AC DC current  & voltage test, Capacitance, resistance,Diode Test, Continuity, Data hold, TRUE RMS  functions etc. high accuracy and easy operation face. it's widely used in DIY, Professional Engineering and PCB circuit checking etc.

Packaging & Shipping
Port: Shenzhen
            Lead Time :
Quantity(Pieces) 1 - 40 41 - 1000 >1000
Est. Time(days) 3 25 To be negotiated



Specification



Specification   Range    Accuracy
 HT113 HT113A HT113B HT113C
 DC Voltage   200mV/2V/20V/200V/600V  ±(0.5%+3)  ±(0.5%+3)
 400mV/4V/40V/400V/600V     ±(0.5%+3)
 600mV/6V/60V/600V       ±(0.5%+3)
AC Voltage     200V/600V  ±(1.0%+3)  ±(1.0%+3)
 400mV/4V/40V/400V/600V     ±(1.0%+3)
 600mV/6V/60V/600V       ±(1.0%+3)
DC Current  20mA/200mA ±(1.2%+3)
200mA   ±(1.2%+3)
400uA/4000uA/40mA/400mA     ±(1.2%+3)
600uA/6000uA/60mA/600mA       ±(1.2%+3)
 10A ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)
AC Current      200mA    ±(1.5%+3)
 400uA/4000uA/40mA/400mA      ±(1.5%+3)
 600uA/6000uA/60mA/600mA        ±(1.5%+3)
 10A    ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)
Resistance     200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ  ±(1.0%+3)  ±(1.0%+3)
 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ      ±(1.0%+3)
 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ        ±(1.0%+3)
 Cpacitance  60nF/600nF/6uF/60uF/6mF/60mF        ±(4.0%+5)
 Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz        ±(1.0%+3)
 Duty 1%~99%        ±(3.0%+3)
 Display   2000 counts 2000counts 4000counts 6000counts
  Auto/Manual range  manual manual Auto Auto
  Live test        √
  NCV    √(LED&Beep)  √(LED&Beep)  √(LED&Beep)
  Diode test  √  √  √  √
Continuity √ √(LED&Beep) √(LED&Beep) √(LED&Beep)
Max data hold     √ √
Data hold √ √ √ √
True RMS     √ √
bandwiidth 40~400Hz 40~400Hz 40~400Hz 1KHz
battery Test √ √ √
Low battery indication √ √ √ √
Auto power off √ √ √ √
back light √ √ √ √
work light   √ √ √
Power  2X1.5V AAA battery
Weight 250g
  Size      151X75X48mm
Product Description

600uA 6000 Counts 600Ohm Digital Auto Range Multimeter

600uA 6000 Counts 600Ohm Digital Auto Range Multimeter

600uA 6000 Counts 600Ohm Digital Auto Range Multimeter





600uA 6000 Counts 600Ohm Digital Auto Range Multimeter
