200Ohm 200mV 200mA Handheld Digital Multimeter

Place of Origin : Guangdong, China

Brand Name : Habotest

Model Number : HT113A

MOQ : 1-49 Pieces

Price : $8.00

Certification : CE, Rohs , EMC

Measuring Current Range : 200mA/10A

Measuring Voltage Range : 200mV/2V/20V/200V/600V

Measuring Resistance Range : 200Ohm/2kOhm/20kOhm/200kOhm/2MOhm/20MOhm

Operating Temperature : 0~40

Dimensions : 151*75*48mm

Diode test : yes

continuity : yes

bandwidth : yes

battery test : yes

Selling Units : Single item

Single package size  : 15.5X11X5.5 cm

Single gross weight : 0.350 kg

Package Type : 40pcs/ Cartoon

Contact Now

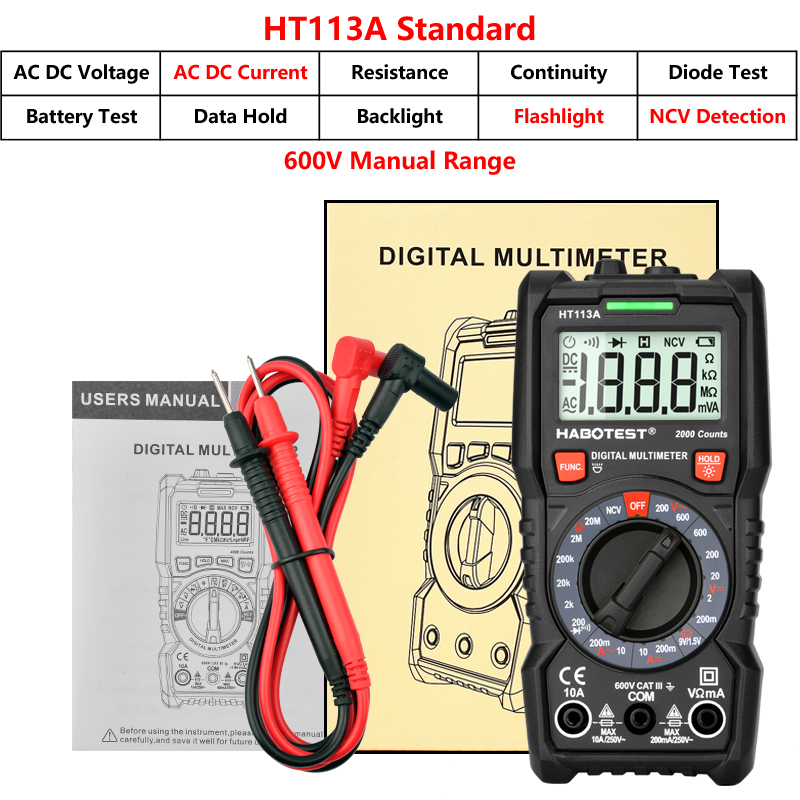

Habotest HT113A DMM Digital Multimeter DC AC voltage Current pocket size Tester





Packaging & Shipping
Port: Shenzhen
            Lead Time :
Quantity(Pieces) 1 - 40 41 - 1000 >1000
Est. Time(days) 3 25 To be negotiated



This Digital Multimeter has AC DC current & voltage test,Diode Test, Continuity, Data hold, TRUE RMS functions etc. high accuracy and easy operation face. it's widely used in DIY, Professional Engineering and PCB circuit checking etc.

Specification



Specification   Range    Accuracy
 HT113 HT113A HT113B HT113C
 DC Voltage   200mV/2V/20V/200V/600V  ±(0.5%+3)  ±(0.5%+3)
 400mV/4V/40V/400V/600V     ±(0.5%+3)
 600mV/6V/60V/600V       ±(0.5%+3)
AC Voltage     200V/600V  ±(1.0%+3)  ±(1.0%+3)
 400mV/4V/40V/400V/600V     ±(1.0%+3)
 600mV/6V/60V/600V       ±(1.0%+3)
DC Current  20mA/200mA ±(1.2%+3)
200mA   ±(1.2%+3)
400uA/4000uA/40mA/400mA     ±(1.2%+3)
600uA/6000uA/60mA/600mA       ±(1.2%+3)
 10A ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)
AC Current      200mA    ±(1.5%+3)
 400uA/4000uA/40mA/400mA      ±(1.5%+3)
 600uA/6000uA/60mA/600mA        ±(1.5%+3)
 10A    ±(2.0%+3)  ±(2.0%+3)  ±(2.0%+3)
Resistance     200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ  ±(1.0%+3)  ±(1.0%+3)
 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ      ±(1.0%+3)
 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ        ±(1.0%+3)
 Cpacitance  60nF/600nF/6uF/60uF/6mF/60mF        ±(4.0%+5)
 Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz        ±(1.0%+3)
 Duty 1%~99%        ±(3.0%+3)
 Display   2000 counts 2000counts 4000counts 6000counts
  Auto/Manual range  manual manual Auto Auto
  Live test        √
  NCV    √(LED&Beep)  √(LED&Beep)  √(LED&Beep)
  Diode test
Continuity √(LED&Beep) √(LED&Beep) √(LED&Beep)
Max data hold
Data hold
True RMS
bandwiidth 40~400Hz 40~400Hz 40~400Hz 1KHz
battery Test
Low battery indication
Auto power off
back light
work light
Power  2X1.5V AAA battery
Weight 250g
  Size      151X75X48mm
Product Description

200Ohm 200mV 200mA Handheld Digital Multimeter200Ohm 200mV 200mA Handheld Digital Multimeter200Ohm 200mV 200mA Handheld Digital Multimeter200Ohm 200mV 200mA Handheld Digital Multimeter200Ohm 200mV 200mA Handheld Digital Multimeter



Our Services

* Inquiry and sonsulting support * 12 months warranty

* Online presentation if necessary * Spare parts delivery

* Company & Factory Visit ( Site or Online) * New product exchange

* Free Samples (Shipping Cost Excluded) (Term & Conditions Apply)

Company Information

Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.

We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other detecting insturments for the worldwide customers to meet the growing global market demend, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.

Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.

Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
